TH Series
LCD Battery Powered Timer

CH Series data sheet
Data sheet

The TH Series are elapsed timers that display time in hours or minutes. This series has a small panel footprint and is powered by a 10 year lithium battery. They have a 7-digit LCD display, a push button reset and are panel mounted. They accept a non-voltage contact closure / NPN open collector or a 90-240V AC/DC input. The unit times as long as it is receiving an input. When the input is removed the timer stops. The front reset button can be disabled if desired.

These self-powered timers are designed for applications where no external power is available and as replacements for electromechanical hour meters. They are designed for the determination and monitoring of operating time, warranty period and maintenance intervals on machines and devices. Typical applications are in mechanical processing and woodworking, the textile and paper industry, on central heating boilers, electrical furnaces, power drives, motors, rectifiers, etc.


$31.95 net each (TH Series)

Features
Low cost
Hours or minutes
Screw terminal connections
Battery powered
CE Compliant to the EMC directive
Accepts a wide range of inputs
Small panel footprint


Model

TH-7NM TH-7NH TH-7AM TH-7AH

Function

Timer minutes Timer hours Timer Minutes Timer hours

Display

7 digit, LCD, 8mm (0. 315”) high characters Range 999999.9

Power supply

Internal lithium battery

Battery life

10 years

Input

Non-voltage contact closure / NPN open collector

Voltage, AC/DC 90-240V

Input speed

10 Hz max

Reset

1) Non-voltage contact closure / NPN open collector
2) Front push button

Housing

Plastic

Mounting

Panel mount

Connection

Screw terminals

Temperature range

0 to 50°C (32 to 122°F)

Humidity

35% to 85% RH

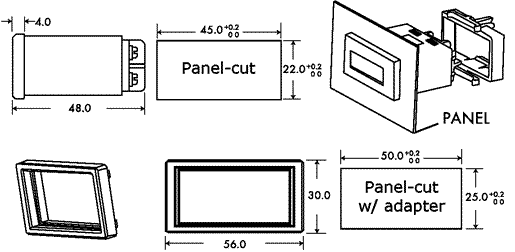

Dimensions: mm (1mm = .03937", 1" = 25.4mm)


Wiring:

Input & reset: NPN open collector / Non-voltage contact closure


Input: Voltage, AC/DC 90-240V
Reset: NPN open collector/ Non-voltage contact closure

To disable the reset button, open the K/P jumper at the rear of the counter.
