Large

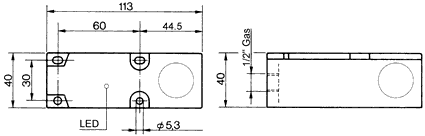

Rectangular Shaped Inductive Sensors
|
Limit Switch Style DC 2/4 & AC 2 Wire
Inductive Proximity Sensor
|
| |
|
| Features: |
|
- Sensing
head can be oriented in 5 different directions
- 4
wire DC models have both NO and NC outputs
- 2
wire AC and DC models are NO or NC programmable
|
- Short
circuit & reverse polarity protection in DC versions
- Protection
degree IP65: dust tight and protection against water jets
- LED
function indicator
|
| |
Model
|
|
|
4
Wire DC
|
2
Wire DC
|
2
Wire AC
|
| Output
Function |
DC
NPN, NO+NC
|
S3150
|
S3152
|
|
|
|
|
|
DC
PNP, NO+NC
|
S3151
|
S3153
|
|
|
|
|
|
NO/NC
select
|
|
|
S3154
|
S3155
|
S3310
|
S3311
|
|
Dimensions:
mm
1 mm = .03937"
1" = 25.4 mm
|
|
| Operating
Distance (Sn) |
15 mm
|
20
mm
|
15
mm
|
20
mm
|
15
mm
|
20
mm
|
| External
Diameter |
40x40x113
mm
|
| Power
Supply |
10-55
Vdc
|
20-250
Vac
|
| Max.
Switching Current |
200
mA
|
100
mA
|
300
mA
|
| Min.
Switching current |
—
|
1.5 mA
|
5
mA
|
| Max.
Peak Current |
—
|
—
|
1.5
A
|
| Residual
Current |
—
|
<
0.6 mA
|
<
1 mA
|
| Power
Drain (24Vdc) |
<
10 mA
|
—
|
—
|
| Voltage
Drop |
<
1.8 V
|
<
6.5 V
|
<
6 V
|
| Short
Circuit Protection |
Yes
|
—
|
| Operating
Frequency |
300
Hz
|
12
Hz
|
| Repeatability
(%Sn) |
<=
3%
|
| Hysteresis
(%Sn) |
<
10%
|
| Case |
Plastic
|
|
Flush
Mounting
|
Yes*
|
No
|
Yes*
|
No
|
Yes*
|
No
|
| Protection
Degree |
IP
65
|
| Operating
Temperature |
-25
to +70°C
|
| Output
Connection |
Terminal
block
|
*Sensing
head must extend >= 6 mm out from surrounding metal for flush mounting
|
80x80x50

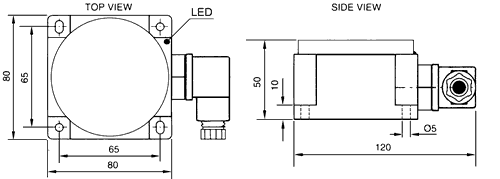

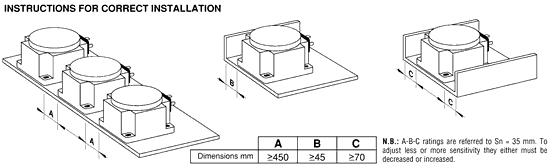

DC 3/4 & AC 2 Wire Inductive Proximity Sensor
|
| |
|
| Features: |
|
- Adjustable
operating distance up to 60 mm
- 4
wire DC models have both NO and NC outputs
- 2
wire AC and DC models are NO or NC programmable
|
- Short
circuit & reverse polarity protection in DC versions
- LED
function indicator
|
| Connector
Version |
Model
|
|
|
4
Wire DC
|
2
Wire DC
|
2
Wire AC
|
| Output
Function |
DC
NPN, NO+NC
|
S3156
|
|
|
|
DC
PNP, NO+NC
|
S3157
|
|
|
|
NO/NC
select
|
|
S3158
|
S3312
|
|
Dimensions:
mm
1 mm = .03937"
1" = 25.4 mm
|
|
| Operating
Distance (Sn) |
10 - 60 mm (adjustable)
|
| External
Diameter |
80x80x50
mm
|
| Power
Supply |
10-55
Vdc
|
20-250
Vac
|
| Max.
Switching Current |
200
mA
|
100
mA
|
300
mA
|
| Min.
Switching current |
—
|
1.5
mA
|
5
mA
|
| Max.
Peak Current |
—
|
—
|
1.5
A
|
| Residual
Current |
—
|
<
0.6 mA
|
<
1 mA
|
| Power
Drain (24Vdc) |
<
10 mA
|
—
|
—
|
| Voltage
Drop |
<
1.8 V
|
<
6.5 V
|
<
6 V
|
| Short
Circuit Protection |
Yes
|
—
|
| Operating
Frequency |
50
Hz
|
12
Hz
|
| Repeatability
(%Sn) |
<=
3%
|
| Hysteresis
(%Sn) |
<
10% (Sn=50 mm)
|
| Case |
Plastic
|
|
Flush
Mounting
|
Yes*
|
No
|
Yes*
|
No
|
Yes*
|
No
|
| Protection
Degree |
IP
65
|
| Operating
Temperature |
-25
to +70°C
|
| Output
Connection |
Connector
(C2)*
|
* Mating connector
with screw terminals included
| Cable
Version |
Model
|
|
|
4
Wire DC
|
2
Wire DC
|
2
Wire AC
|
| Output
Function |
DC
NPN, NO+NC
|
S3156
|
|
|
|
DC
PNP, NO+NC
|
S3157
|
|
|
|
NO/NC
select
|
|
S3158
|
S3312
|
|
Dimensions:
mm
1 mm = .03937"
1" = 25.4 mm
|
|
| Operating
Distance (Sn) |
10 - 60 mm (adjustable)
|
| External
Diameter |
80x80x50
mm
|
| Power
Supply |
10-55
Vdc
|
20-250
Vac
|
| Max.
Switching Current |
200
mA
|
100
mA
|
300
mA
|
| Min.
Switching current |
—
|
1.5
mA
|
5
mA
|
| Max.
Peak Current |
—
|
—
|
1.5
A
|
| Residual
Current |
—
|
<
0.6 mA
|
<
1 mA
|
| Power
Drain (24Vdc) |
<
10 mA
|
—
|
—
|
| Voltage
Drop |
<
1.8 V
|
<
6.5 V
|
<
6 V
|
| Short
Circuit Protection |
Yes
|
—
|
| Operating
Frequency |
50
Hz
|
12
Hz
|
| Repeatability
(%Sn) |
<=
3%
|
| Hysteresis
(%Sn) |
<
10% (Sn=50 mm)
|
| Case |
Plastic
|
|
Flush
Mounting
|
Yes*
|
No
|
Yes*
|
No
|
Yes*
|
No
|
| Protection
Degree |
IP
65
|
| Operating
Temperature |
-25
to +70°C
|
| Output
Connection |
Cable,
L=2m
|
|
