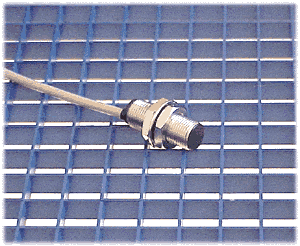

Inductive Proximity Sensor

This short body .12mm diameter inductive proximity sensor has a great low price of $28.95. It is suitable for applications in the following machinery: packaging, printing, paper preparation, weight, metal working, food processing, measurement systems and plastic molding	Data Sheet

$28.95 net each ID#: T2514 Model: F-S1TMU/3AN Features Low cost Short Stainless Steel body 12 mm diameter CE Compliant to the EMC directive Reverse polarity & short circuit protection Shock and vibration resistant Protection degree IP67: dust tight and protection from the effects of immersion LED function indicator

Inductive sensors are used for non-contact detection of metallic objects. Through the use of modern production methods, each sensor is produced to high precision, constant quality and reliability to meet today's tough industrial requirements. For additional information on how inductive sensors operate see Operating Principles.
Specifications Operating Distance: 4mm External Diameter: M12x1 Power Supply: 10-30 Vdc Output Function: NPN, NO Power Drain: < 15 mA Voltage Drop: <1.8 V (@ Imax) Switching Current: 150 ma max Short Circuit Protection: Yes Operating Frequency: 2 kHz Case: Stainless Steel Flush Mount: Yes Protection Degree: IP 67 Operating Temperature: -25 to +70 °C LED Functions Indicator: Yes	Dimensions:mm, 1mm = .03937", 1" = 25.4mm Wiring:
